cmp::scaler::Scaler Class Reference

Template virtual base class for feature scaling and transformation. More...

#include <scaler.h>

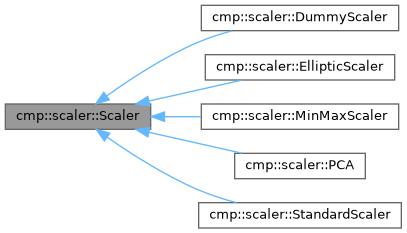

Inheritance diagram for cmp::scaler::Scaler:

Public Member Functions
virtual Eigen::VectorXd	transform (const Eigen::Ref< const Eigen::VectorXd > &data) const =0
	Transforms the input data from physical space to the scaled latent space.
virtual Eigen::VectorXd	inverseTransform (const Eigen::Ref< const Eigen::VectorXd > &data) const =0
	Reconstructs the data from the scaled latent space back to physical space.
virtual Eigen::VectorXd	getIntercept () const =0
	Retrieves the intercept vector \( \mu \) used in the transformation.
virtual Eigen::MatrixXd	getScale () const =0
	Retrieves the scaling matrix \( S \) used in the transformation.
virtual void	fit (const Eigen::Ref< const Eigen::MatrixXd > &data)=0
	Learns the scaling parameters (e.g., mean, variance) from the training data.
virtual Eigen::MatrixXd	fit_transform (const Eigen::Ref< const Eigen::MatrixXd > &data)=0
	Fits the scaling parameters to the data and subsequently transforms the data.

Detailed Description

Template virtual base class for feature scaling and transformation.

Mathematical Formulation

Define a transformation mapping \( T: \mathbb{R}^d \to \mathbb{R}^d \) and its inverse \( T^{-1} \):

\[ y = T(x) \]

\[ x = T^{-1}(y) \]

Often represented linearly with intercept \( \mu \) and scaling factor/matrix \( S \):

\[ T(x) = S^{-1}(x - \mu) \]

\[ T^{-1}(y) = S y + \mu \]

• ### Implementation Algorithm Pure virtual interface. Concrete implementations define the fitting, transforming, and inverse transforming steps.

Member Function Documentation

fit()

virtual void cmp::scaler::Scaler::fit ( const Eigen::Ref< const Eigen::MatrixXd > &  data )

pure virtual

Learns the scaling parameters (e.g., mean, variance) from the training data.

Parameters

data	A matrix \( X \in \mathbb{R}^{n \times d} \) of training samples.

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

fit_transform()

virtual Eigen::MatrixXd cmp::scaler::Scaler::fit_transform ( const Eigen::Ref< const Eigen::MatrixXd > &  data )

pure virtual

Fits the scaling parameters to the data and subsequently transforms the data.

Parameters

data	A matrix \( X \in \mathbb{R}^{n \times d} \) of training samples.

Returns

The transformed dataset matrix \( Y \).

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

getIntercept()

virtual Eigen::VectorXd cmp::scaler::Scaler::getIntercept ( ) const

pure virtual

Retrieves the intercept vector \( \mu \) used in the transformation.

Returns

The intercept vector.

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

getScale()

virtual Eigen::MatrixXd cmp::scaler::Scaler::getScale ( ) const

pure virtual

Retrieves the scaling matrix \( S \) used in the transformation.

Returns

The scaling matrix.

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

inverseTransform()

virtual Eigen::VectorXd cmp::scaler::Scaler::inverseTransform ( const Eigen::Ref< const Eigen::VectorXd > &  data ) const

pure virtual

Reconstructs the data from the scaled latent space back to physical space.

Parameters

data	A column vector \( y \) in the scaled space.

Returns

The unscaled physical data vector \( x \).

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

transform()

virtual Eigen::VectorXd cmp::scaler::Scaler::transform ( const Eigen::Ref< const Eigen::VectorXd > &  data ) const

pure virtual

Transforms the input data from physical space to the scaled latent space.

Parameters

data	A column vector \( x \) representing a single data point in physical space.

Returns

The scaled data vector \( y \).

Implemented in cmp::scaler::StandardScaler, cmp::scaler::PCA, cmp::scaler::DummyScaler, cmp::scaler::EllipticScaler, and cmp::scaler::MinMaxScaler.

---

The documentation for this class was generated from the following file:

• include/scaler.h
